Installation
How to install
Hand dryer HY-301
Safety Precautions for Installation
- * Securing Bracket with Wall plugs & screw
- Male: 1,350mm from the floor
- Female: 1,250mm from the floor - * Accurately Inspect a Flat Surface
- * Set up a safe place from near door or exit
Installation
- 01Mark the hole for drilling (3 upper part, 1 middle part)
- 02Drill the marked area(6mm) and Insert the wall plugs into the hole
- 03Fasten the bracket with screws (M4*35mm)
- 04Align the two holes on the back of the body, then Fix in place
- 05Screw the middle part inside the circle with screws (M4*12mm)
- 06Make sure Hand dryer is fully secured before use
Hand dryer HY-402
Installation

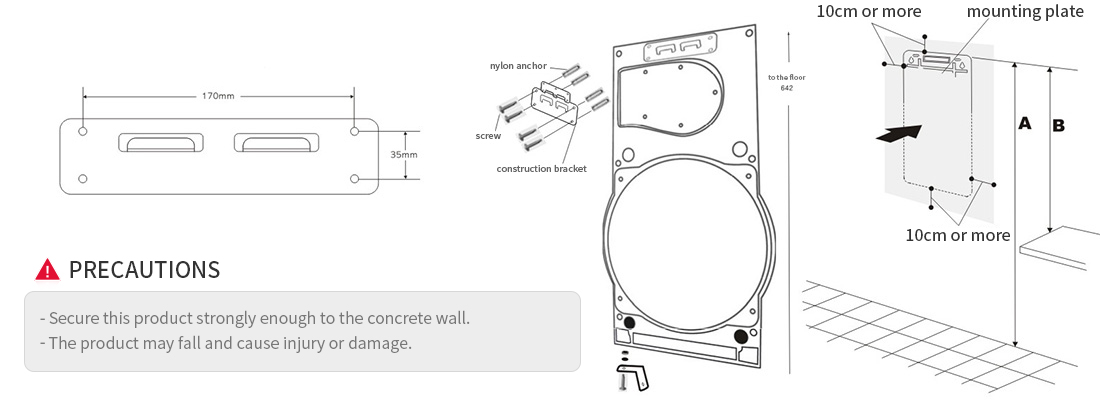

- 01Fix the construction bracket with nylon anchors and screws at the location of the wall to be installed as shown in the figure.
(Drop the nylon anchor insertion hole to a depth of about 35mm with a ¢6.5 drill.) - 02Lift the main body and insert it into the installed bracket, check there is no shaking, and make it level.
- 03Fix only one of the two grooves on the bottom of the body with the enclosed bolt, nut, and washer.
- 04After installation, the product must be re-checked for any abnormalities.
Trash can
Installation
- 01Wipe the wall to attach in order to remove humidity and dust.
- 02Fix it to the wall using the adhesive on the back or with the included bolts.
- - Scope of application: Ceramic tile, Smooth marble & glass &
wood wall & metal etc
- - Not suitable for tape: wall paper, Painted wall, Rough surface.
How to clean
- 01Use a soft cloth with neutral detergent and wipe it again with a dry cloth.
- ※ In case of using an acid detergent, it may damage the surface.
